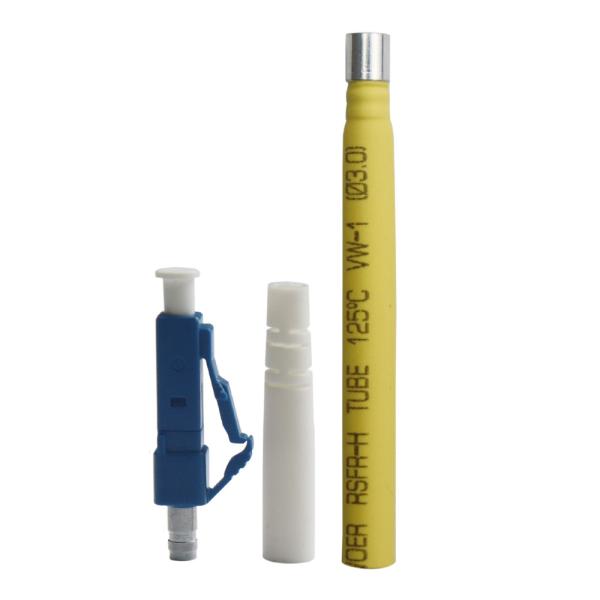

LC UPC Fiber Optic Connector for Data Transmission Networks Optical test instrument
1. Product Description:
The LC connector is a miniaturized, high-performance, and highly reliable optical fiber connector that is suitable for various optical fiber communication and transmission application scenarios. It plays an important role, especially under high-density optical fiber connection requirements.
Carefiber offers a wide selection of fiber optic Connectors. Our selection includes SC, FC, LC, ST, E-2000, MTRJ, MU, MTP, MPO, DIN, SMA-905/906, and D4 models. What differentiates us is that our patch cord connectors have been designed with a utility patent. This provides a unique solution to fiber connection.
2. Technical Parameters:
| Project | Spec. | Standard |
| Operation loss | 850nm &1300nm | GR-326-CORE； IEC 61300 |
| Insertion loss | ≤0.3dB(Typical value:0.2dB) |
| Return loss | ≥45dB |
| Repeatability | ≤0.2dB |
| Interchangeability | ≤0.2dB |
| Mechanical Endurance | ≥500 Times |
| Working temperature | -40～+85℃ |
3. Features:
1. Small size: The LC connector is smaller than other fiber optic connectors, and its insertion loss and return loss are also lower. This makes LC connectors ideal for high-density fiber optic connections, especially in scenarios that require a large number of fiber optic connections, such as data centers and high-speed fiber optic networks.
2. High bandwidth: The LC connector uses a 1.25mm ceramic ferrule, supports single-mode and multi-mode optical fibers, and can provide high-bandwidth transmission. It has low insertion loss and reflection loss when transmitting high-speed data, helping to maintain high-quality signal transmission.
3. Easy to connect and disconnect: The LC connector adopts a plug-in and pull-out design, which is easy to operate and makes it easy to connect and disconnect optical fibers. This makes network maintenance and fiber cabling more convenient, saving time and labor costs.
4. High reliability: LC connectors are designed and manufactured with good mechanical stability and long-term reliability. It uses a precise ceramic ferrule and precision alignment structure to provide a stable fiber connection and reduce the risk of fiber breakage and damage.
5. Strong compatibility: LC connectors are interoperable with other common fiber optic connectors such as SC and ST connectors and can be interconnected with them. This makes the integration and upgrade of LC connectors in existing fiber optic networks more convenient.
4. Applications:
1. Data Transmission Networks
2. Image transmission Networks
3. Optical test instrument
4. Photoelectric automatic control system
5. Carefiber Services:
1. Any questions will be replied to within 24 hours.
2. Professional manufacturer, Welcome to visit our company.
3. 100% test before shipping.
4. OEM/ODM is available (As required print logo and customized color).
5. Fast delivery time(2 days for samples,order 3~7 days for bulk production)
6. FAQ:
Q1: What is a Fiber Optic Patch Cord?
A: A Fiber Optic Patch Cord is a length of fiber optic cable terminated with a connector on each end, used to connect network devices like switches, routers, media converters, etc. The brand name is CFO and the place of origin is China.
Q2: What are the types of Fiber Optic Patch Cord?
A: There are two types of Fiber Optic Patch Cord: single-mode and multimode. Single-mode Fiber Optic Patch Cord is used for long-distance communication. Multimode Patch Cord is used for short-distance communication.
Q3: What are the advantages of Fiber Optic Patch Cord?
A: Fiber Optic Patch Cord has many advantages, including high speed and large bandwidth, low power consumption, low signal loss, and electromagnetic interference immunity.
Q4: What kind of connector is used for a Fiber Optic Patch Cord?
A: The most common connectors used in Fiber Optic Patch Cord are LC, SC, ST, and FC. They are used to connect network devices like switches, routers, media converters, etc.
Q5: What is the length of Fiber Optic Patch Cord?
A: The length of Fiber Optic Patch Cord varies from 0.5m to 100m, depending on the application.
