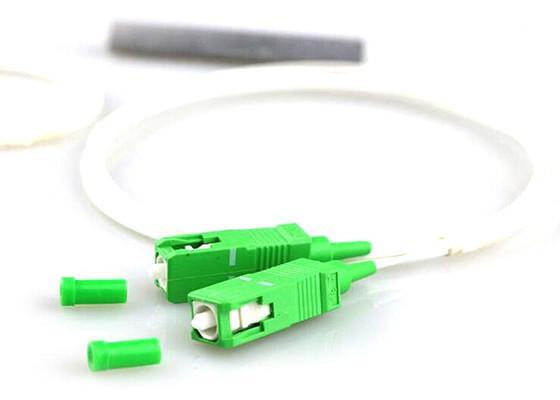

1 * 2 Bare PLC Splitter 250um , Superior Uniformity Passive Optical Splitter
PLC splitter is an optical power distribution device based on the integrated waveguide of quartz plate. With the features of small size, wide range of operating wavelength, stable reliability and good uniformity, It’s widely used in PON,ODN,FTTX point to connect between termination device and central office to achieve the signal splitter.
1. Features:
1. 1xN and 2xN splitters tailored per application
2. Low Insertion Loss and low PDL
3. Superior Uniformity
4. Wide Operation Wavelength
5. Wide Operation Temperature
6. High Stability and Reliability
7. Telcordia GR-1209 and GR-1221 Compliance
8. YD/T 2000.1-2009 Compliance (TLC Product Certificate Compliance)
2. Applications:
- Fiber to The Home (FTTH)
- Passive optical networks (PON)
- Local Area Networks (LAN)
- Cable Television (CATV)
- Test Equipment
- FTTX Systems
- PON Networks
- CATV Links
- Optical Signal Distribution
3. Specification:
| Grade Parameter | Grade“Premium” |
| Operating Wavelength (nm) | 1310&1550nm,others on request |
| Bandwidth (nm) | ±40nm |
| Excess Loss (dB) | ≤0.1dB(0.06dB TYP ) |
| Coupling Ratio (%) | 50/50 | 40/60 | 30/70 | 20/80 |
| Typ. Insertion Loss (dB) | 3.1 | 4.2/2.4 | 5.4/1.7 | 7.2/1.1 |
| Max. Insertion Loss (dB) | 3.4 | 4.5/2.7 | 5.8/2.0 | 7.6/1.5 |
| Polarization Dependent Loss (dB) | 0.1 | 0.1 | 0.15/0.1 | 0.15/0.1 |
| Thermal Stability (dB /℃) | ≤0.2dB |
| Directivity (dB) | ≥55 dB(≥60dB 2×2) |
| Operating Temperature(℃) | -20℃to +70℃ |
| Package Type | 1.bare fiber1:900um loose tube；2.Φ0.9& tube Φ3.0tube:900um loose tube or3mm loose cable (or 2mm)；3Pigtail Type l4.19″Standard rack type |
| Lead length | 1 meter, others on request |
| Package Dimensions(mm) | Φ3×54 | 90×20×10 | 100×80×10 |
We sincerely invite all interested buyers to visit our company and contact us directly for further information. Carefiber, Care our life.
Advantages Of Fiber Optic Splitter
1. Adopt high strength stainless steel, pass salt spray test
2. Ferrule core is less than 0.2um
3. Adopt 100% new raw material, ROHS compliance
4. Low Insertion loss
5. Low PDL Compact Design
6. Good channel-to-channel uniformity
7. Wide Operating Wavelength: from 1260nm to 1650nm
8. Wide Operating Temperature: from -40℃ to 85℃
FAQ
Q: Are you trading company or manufacturer?
A: We are original manufacturer. We can do OEM/ODM business.Our company mainly produces optical fiber products.
Q: How long is your delivery time?
A: Group buying delivery time: 30-60 days; General delivery time: 20 days.
Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.
